NA1002




Style NA1002 is a compressed non-asbestos sheet gasket material produced from a combination of aramid, inert

and reinforced fillers and bonded with nitrile rubber.

It is manufactured through the hot calendar process under rigorous quality control standards that are registered under

ISO-9001 certification.





Download Spec Sheet


NA1122




Teadit style NA1122 was developed to exhibit superior thermal stability during extreme thermal cycling applications. It is

specifically recommended for saturated and superheated steam services but has also proven itself to be very effective in

sealing liquid petroleum derivates, ethanol, chemical products and other fluids. Field tests have validated the results found

in our laboratories and have confirmed the higher performance capabilities of the NA1122 compressed sheet.

Available with or without wire.



Download Spec Sheet


Teadit 24 B




Teadit 24 B is a non-asbestos gasket material made from pure, expanded, virgin PTFE. The whole production process is

subject to strict quality control registered under DIN EN ISO 9001. Because of the excellent thermal and chemical

resistance of Teadit 24 B, it can be used in a wide variety of static applications in nearly all kinds of the industry. The

exceptional malleability of expanded PTFE can compensate for out-of-parallel and/or damaged sealing surfaces and allows

use with stress sensitive connections and applications where only a limited flange load is available, e.g. plastic flanges,

glass flanges, etc.



Download Spec Sheet


Teadit 24 SH



Teadit 24 SH is a large gasket sheet produced from 100% pure, multi-directionally expanded PTFE. It is a universally

employable gasket sheet for all applications. It is suitable for all types of flanges, nearly all media, a wide temperature

range and for applications with the toughest demands on purity. It is inherently clean and non-toxic. The excellent

malleability of Teadit 24 SH makes repairing of small damages and/or irregularities of the sealing area (flange surface)

unnecessary.



Download Spec Sheet


Quimflex PL100




Quimflex PL100 is a highly compressible PTFE - Gasket Sheet manufactured by a unique process which provides a high

level of fibrillation to overcome the creep relaxation and cold flow problems associated with standard (skived or moulded)

PTFE sheets. It is produced from virgin PTFE resin filled with hollow-glass-micro-spheres and it is suitable for service with

a wide variety of aggressive fluids, including hydrocarbons, acids and caustics, solvents, water, steam, hydrogen-peroxide,

refrigerants, etc.



Download Spec Sheet


Teadit TF 1570




TEADIT TF 1570 is a structured PTFE - Gasket - Sheet manufactured by a unique process which provides a high level of

fibrillation to overcome the creep relaxation and cold flow problems associated with normal (skived or moulded) PTFE

sheets. TEADIT TF 1570 is produced from virgin PTFE resin filled with hollow glass micro spheres. TEADIT TF 1570 is

suitable for service with a wide variety of aggressive fluids, including hydrocarbons, acids and caustics, solvents, water,

steam, hydrogen-peroxide, refrigerants, etc.



Download Spec Sheet


Teadit TF 1580




TEADIT TF 1580 is a structured PTFE - Gasket - Sheet manufactured by a unique process which provides a high level of

fibrillation to overcome the creep relaxation and cold flow problems associated with normal (skived or moulded) PTFE

sheets. TEADIT TF1580 is produced from virgin PTFE resin filled with Barium Sulfate. It is suitable for all types of flanges,

nearly all media, a broad temperature range and even for applications with the toughest demands on purity. It is inherently

clean and non-toxic.



Download Spec Sheet


Teadit TF 1590




TEADIT TF 1590 is a structured PTFE - Gasket - Sheet manufactured by a unique process which provides a high level of

fibrillation to overcome the creep relaxation and cold flow problems associated with normal (skived or moulded) PTFE

sheets. TEADIT TF1590 is produced from virgin PTFE resin filled with Silica. It is suitable for services with high pressures

and temperature, especially in chemical processing and hydrocarbon plants in strong acids (except hydrofluoric), solvents,

hydrocarbons, water, steam, and chlorine.



Download Spec Sheet

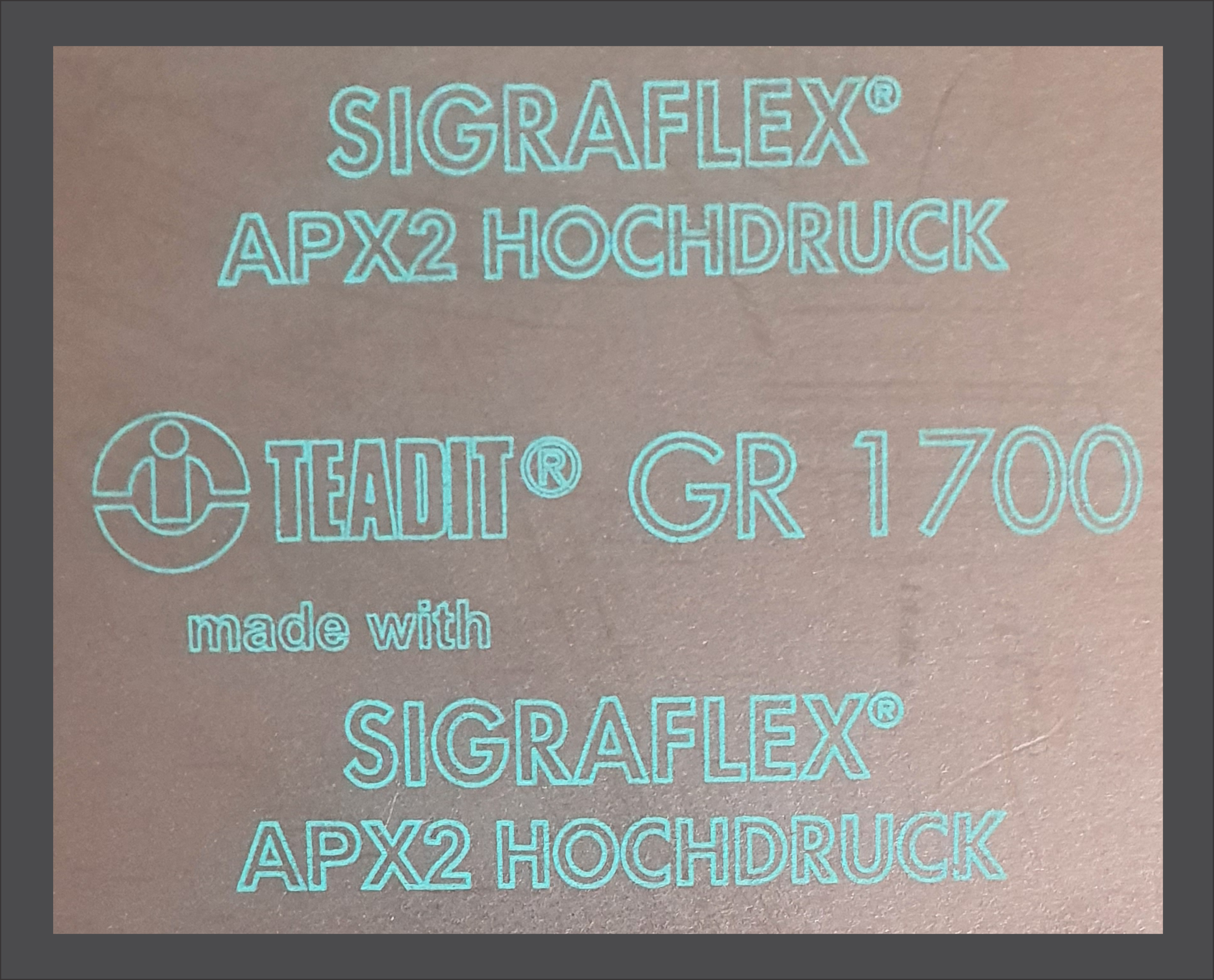

GR1700




This a a mutlilayer high-strength graphite sealing sheet comprising 1.5mm thick layers of high-purity graphite foil and 0.05mm

thick stainless steel foils. Depending on the sheet thickness required, several layers of graphite and stainless foil are joined

together in a patented adhesive-free process. As a result, the sheets have outstanding mechanical properties. The sealing

sheet is impregnated to reduce leakage and improve handling.
